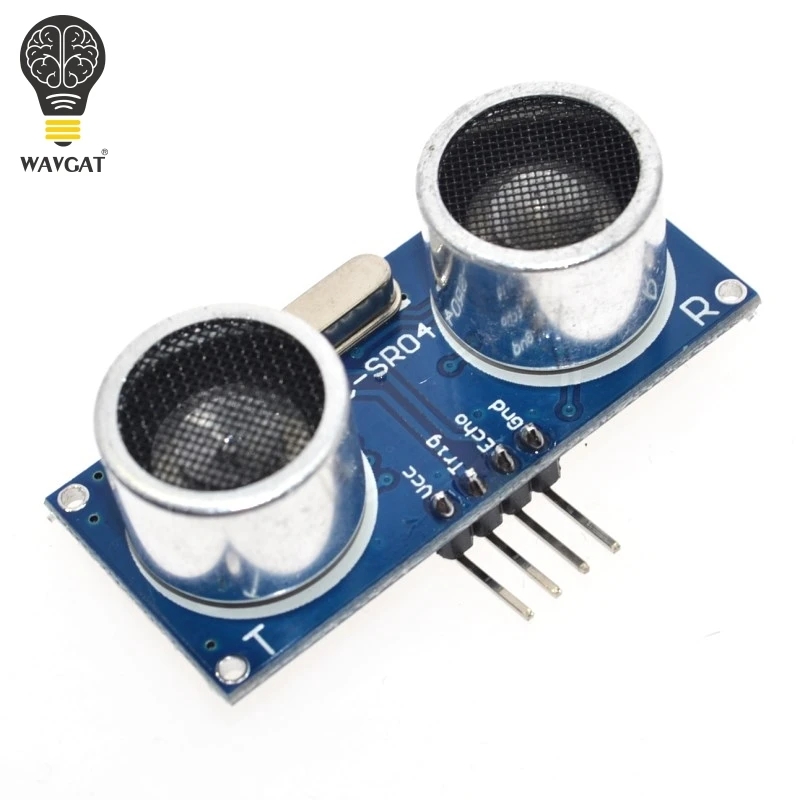

Dc 5V Waterproof Ultrasonic Module Distance Measuring Transducer Sensor

Description : This module uses the simple method, a control port with a 10US above high level, can wait for high level output at the receiving port. An output can drive the timer, when this port is low can read the timer value, this time for the location of the time, can be calculated distance. So constantly cycle test, that can achieve the measurement of the value of your mobile. Specification : Electrical properties : Operating voltage : DC 5V Total current work : 40mA Acoustic emission frequency : 40khz Farthest distance : 4.5m Blind : 25cm Wiring : 5V (positive power supply) Trig (control side) RX Echo (the receiver) TX GND (negative) Resolution : about 0.5cm Angle : 70 degrees Working temperature : -10 70 Storage temperature : -20 80 Product Features : - small size, easy to use - low voltage, low power consumption - high accuracy - strong anti-jamming - integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions. Application : 1 Horizontal distanc Lees meer over de Dc 5V Waterproof Ultrasonic Module Distance Measuring Transducer Sensor van huismerk in de productgroep elektronica
