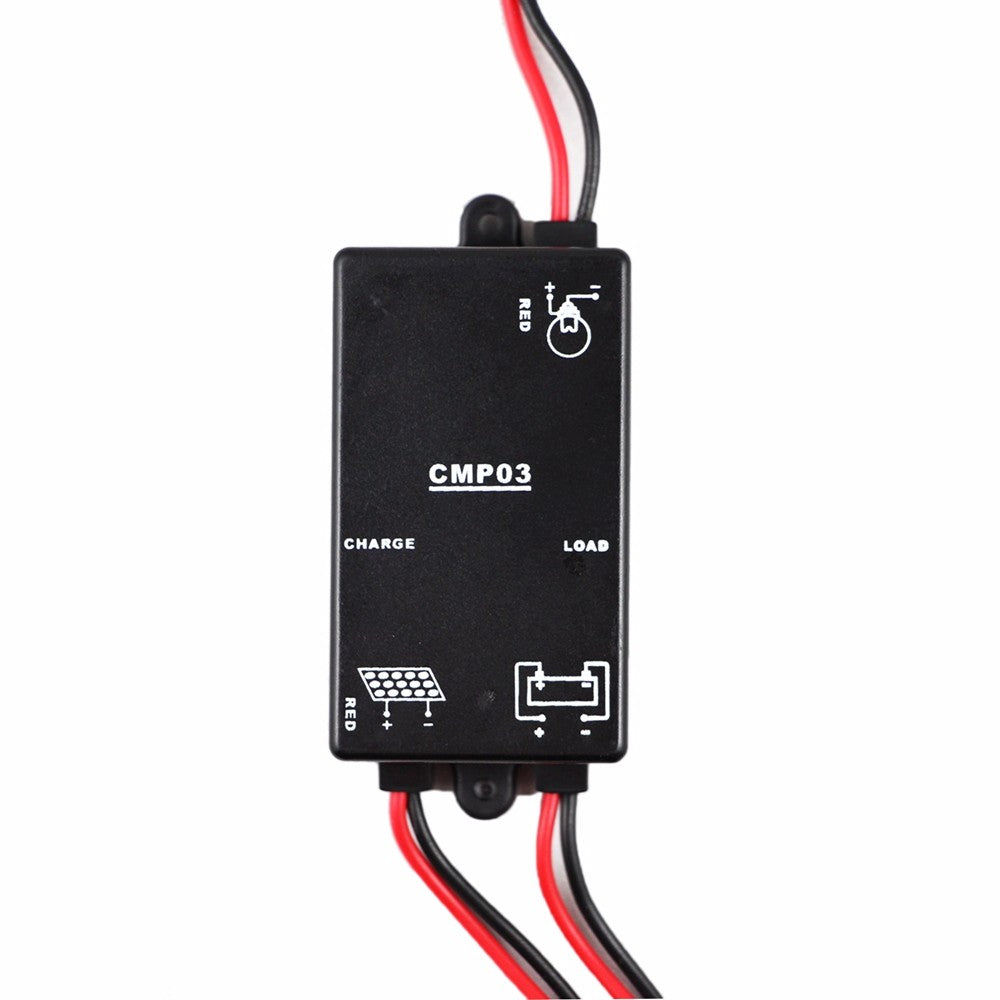

Cmp03 3A 12V Charge And Discharge Controller Solar Panel

Specification : Model : CMP03 Rated Voltage : DC12V Max Current : 3A voltage of solar panels : 36W(3A,12v) Charge-stop Voltage : 14.4V Coefficient of Stop Voltage and Temp : -3mV/degree/cell Supply-stop Voltage : 10.6V Supply-resume Voltage : 12V Light Control Mode : Visibility 20M Working Temp : -10- 40degree Weight : 33g Function : 1. Prevent the battery from over charging, over discharging and Reverse discharging to solar panel during nights. 2. Controller will start the lighting system in the evening automatically according to the surrounding luminance. Indicator : 1. One charging indicator, light indicates strong charging, flash indicates float charging, not light indicates stop charging. 2. One Load indicator, light indicates there is power output, the loads could normal working, not light indicates no output, check whether the battery is in low-voltage or the connection is OK. Attention : 1.Please check the rated voltage of the solar panel and loads,they must be same with contro Lees meer over de Cmp03 3A 12V Charge And Discharge Controller Solar Panel van huismerk in de productgroep elektronica
